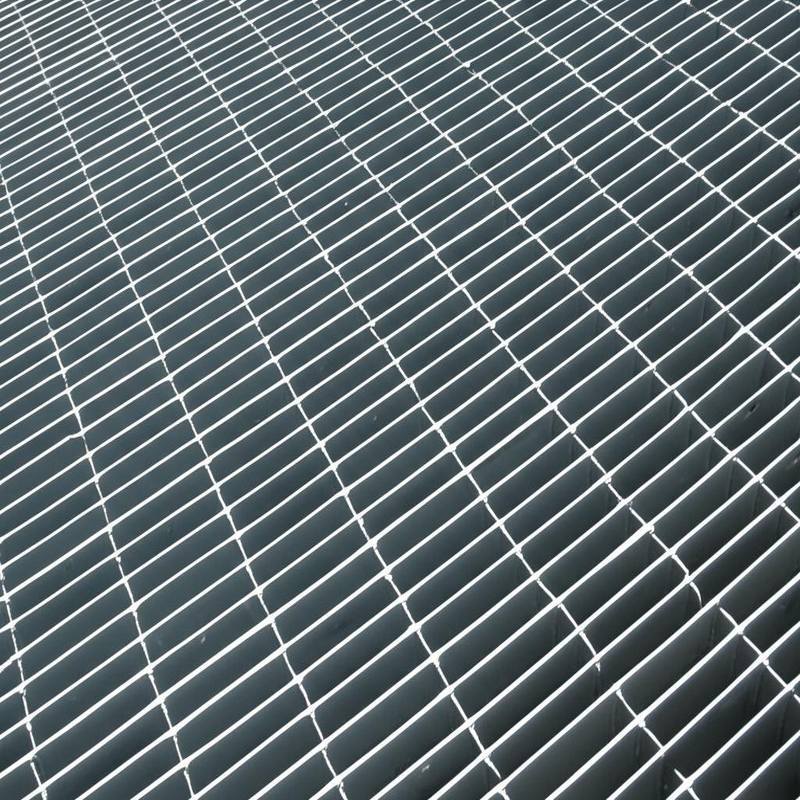

Galvanized Steel Grating 30x100mm Mesh 3.0mm Thickness
Kontaktieren Sie mich für kostenlose Proben und Gutscheine.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Produktname | Verzinkte Stahlgitter | Material | Kohlenstoffstahl |
|---|---|---|---|
| Herkunftsort | Hebei, China | Oberflächenbehandlung | heiß getauchte verzinkt |
| Farbe | Splitter | Typ | einfache Stange |
| Zertifikat | ISO9001 | Anwendung | Bürogebäude |
| Markenname | LaiDi | Garantie | 1 Jahr |
| Gitternetz | 30x100mm | Zähigkeit von Stahl | 3,0 mm |
| Hervorheben | galvanized steel grating 30x100mm mesh,steel grating 3.0mm thickness,galvanized mesh grating with warranty |
||
Produkt-Beschreibung
Q235 Heavy Duty Driveway Platform Walkway Floor With Steel Grating
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Galvanized steel grating |
| Material | Carbon steel |
| Place of Origin | Hebei, China |
| Surface Treatment | Hot dipped galvanized |
| Color | Silver |
| Type | Plain bar |
| Certificate | ISO9001 |
| Application | Office building |
| Brand Name | LaiDi |
| Warranty | 1 year |
| Grate Mesh | 30x100mm |
| Steel Thickness | 3.0mm |
Product Description
Q235 Metal Building Materials Rain Water Drainage Trench Driveway Galvanized Grating
Steel grating is also called steel frame lattice or steel grid plate. Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings.
Technical Specifications
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
|---|---|
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface treatment | Black, self color, hot dip galvanized, painted, spray coating |
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
Key Features
- Resistant to extremely high temperature
- Corrosion resistance and alkaline resistance
- Anti-rust
- Skid resistance
- Very rigid surface can stand heavy wear and tear
Applications
Steel grating has been widely used in all walks of life worldwide. It is mainly used as platform plates, ditch covers, stair treads, and building ceilings. The products feature high strength, light structure, high load-bearing capacity, and convenience for loading. The hot-dipped zinc coating provides excellent anti-corrosion resistance.
Applications include:
- Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships
- Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street
- Platforms for oil extraction sites, car washing sites, and air towers
- Fencings for car-parks, buildings, and roads
- Drainage trench covers and drainage pit covers for high strength applications
Packing & Delivery
Frequently Asked Questions
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
